Solutions

REC plants for recovering
slop oil, sludge and water

Three containerised plants, mobile and fixed: they separate oil, water and solids right on site and reduce volumes, transport and disposal costs

The REC family

Three plants,
one way of working

Containerised, mobile and fixed: they arrive on site, connect and separate the waste where it is produced

  1. REC-OIL Recovery System, Mobile Slop Oil Treatment Plant Slop oil and oily sludge

    Recovers oil from slop, tank bottoms and bilge water

    Discover REC-OIL
  2. REC-DRILL Recovery System, Mobile Drilling Treatment Plant Drilling fluids

    Treats spent drilling mud and fluids on site, next to the well

    Discover REC-DRILL
  3. REC-WATER Recovery System, Mobile Water Treatment Plant Oily and process water

    Treats oily water, produced water and industrial wastewater right on site

    Discover REC-WATER

From slop oil to recovered oil,
one single plant

Suction robot, shaker, reactive tank and separation container with Andritz decanter: REC-OIL covers the whole slop treatment chain, in mobile or fixed configuration

>98%of the oil recovered with the pipette decanter
up to40 m3/hflow rate, depending on model and application
<2%water in the recovered oil
>70%dry content in the solids

Indicative yields: actual results depend on the product and the plant

  1. 01

    Suction

    Gerotto robot and suction units

    The Lombrico robot enters through the manhole and empties tanks, lagoons and basins with no operators inside, in ATEX Zone 0

  2. 02

    Mechanical protection

    Shaker

    The vibrating screen removes stones and coarse solids before pumps and centrifuges

  3. 03

    H2S and heavy metals

    RBT reactive tank

    Heating, mixing and reagents neutralise H2S and mineralise heavy metals such as mercury

  4. 04

    Three-phase separation

    Separation container

    Spiral heat exchanger, dosing and Andritz 3Ph ATEX decanter with pipette system, controlled by a single electrical panel

  5. 05

    Output

    Oil, water and solids

    Three separate lines: recovered oil, water to discharge or reuse, spadeable solids

Where it works

  • Tank bottoms
  • Bilge water under MARPOL
  • Desalter residues
  • API separator sediments
  • Oil lagoons and pits
  • Oily DAF sludge
Oil & gas applications

How it is installed

Mobile or fixed
Containerised, it arrives on site and connects
Bilge version
A high-speed separator polishes the outgoing oil
Suction in hazardous areas
Gerotto robot certified for ATEX Zone 0

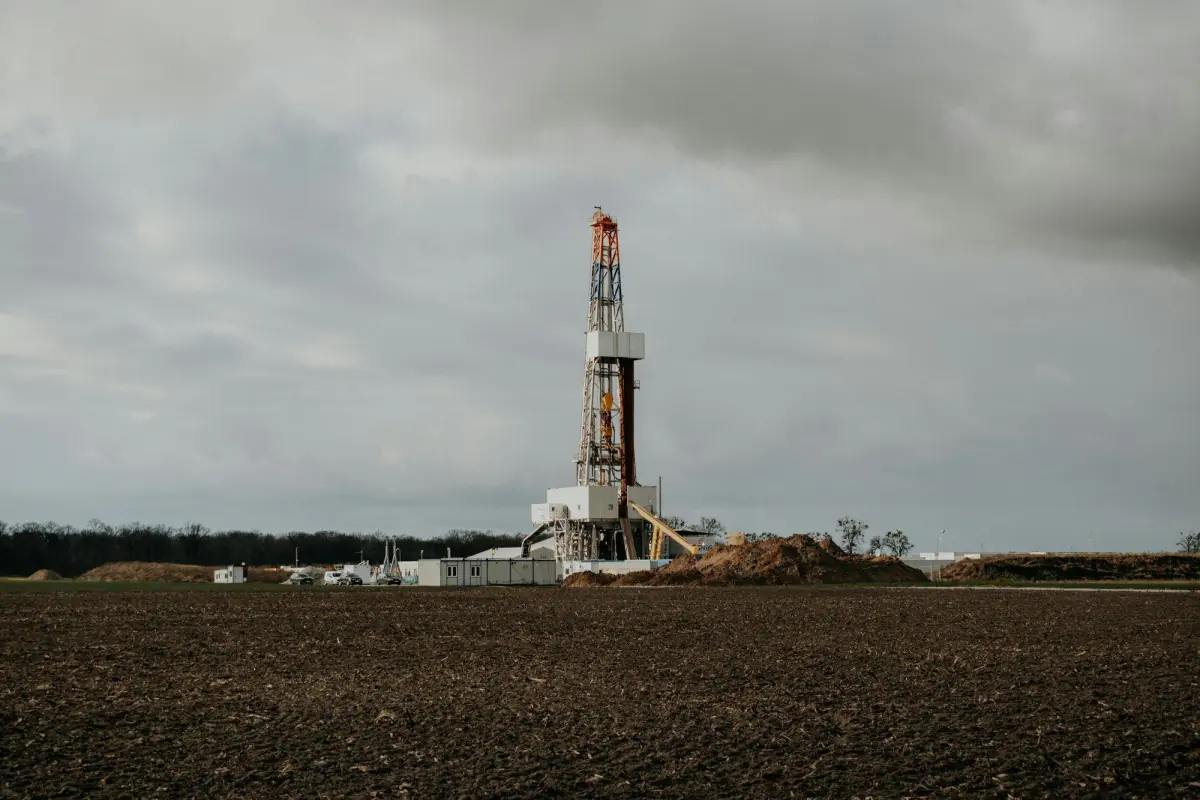

Onshore drilling rig

Drilling mud
treated on site

Mobile plant for spent drilling mud and fluids: separation takes place next to the well, leaving less material to haul away

We treat
Spent drilling mud and fluids, produced water
Where
Oil & gas wells and sites
Technical data
On request, for your fluid and your site
Request the data sheet

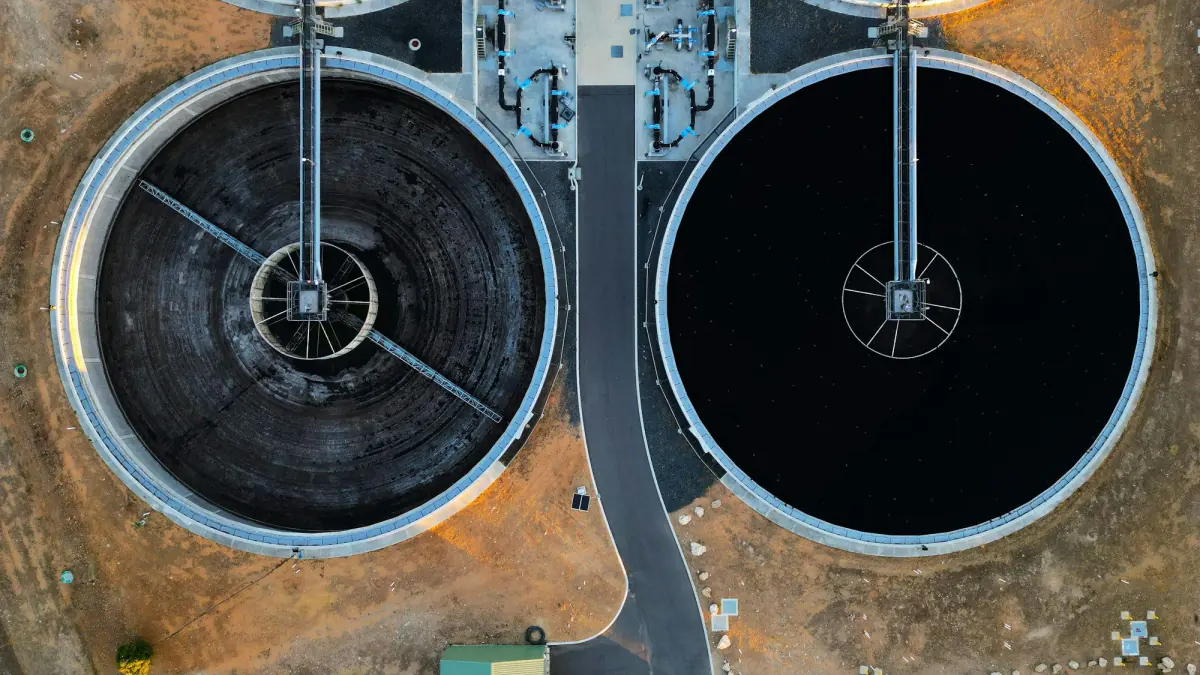

Settling basins at a water treatment plant seen from above

Oily and process water
treated on site

Mobile water plant: it separates oil and solids from water where the wastewater is produced

We treat
Oily water, produced water, industrial wastewater
Where
Industrial plants, depots, sites
Technical data
On request, for your water and your plant
Request the data sheet
Get in touch

Which REC for your waste?
Let’s talk

We start from your waste: composition, volumes and site

Contact us
