Separation
and recovery technologies
Gerotto ATEX robots, Seepex pumps, Andritz Separation decanters and technologies, Macfuge disc stack separators: machines from the manufacturers we work with, integrated into complete plants

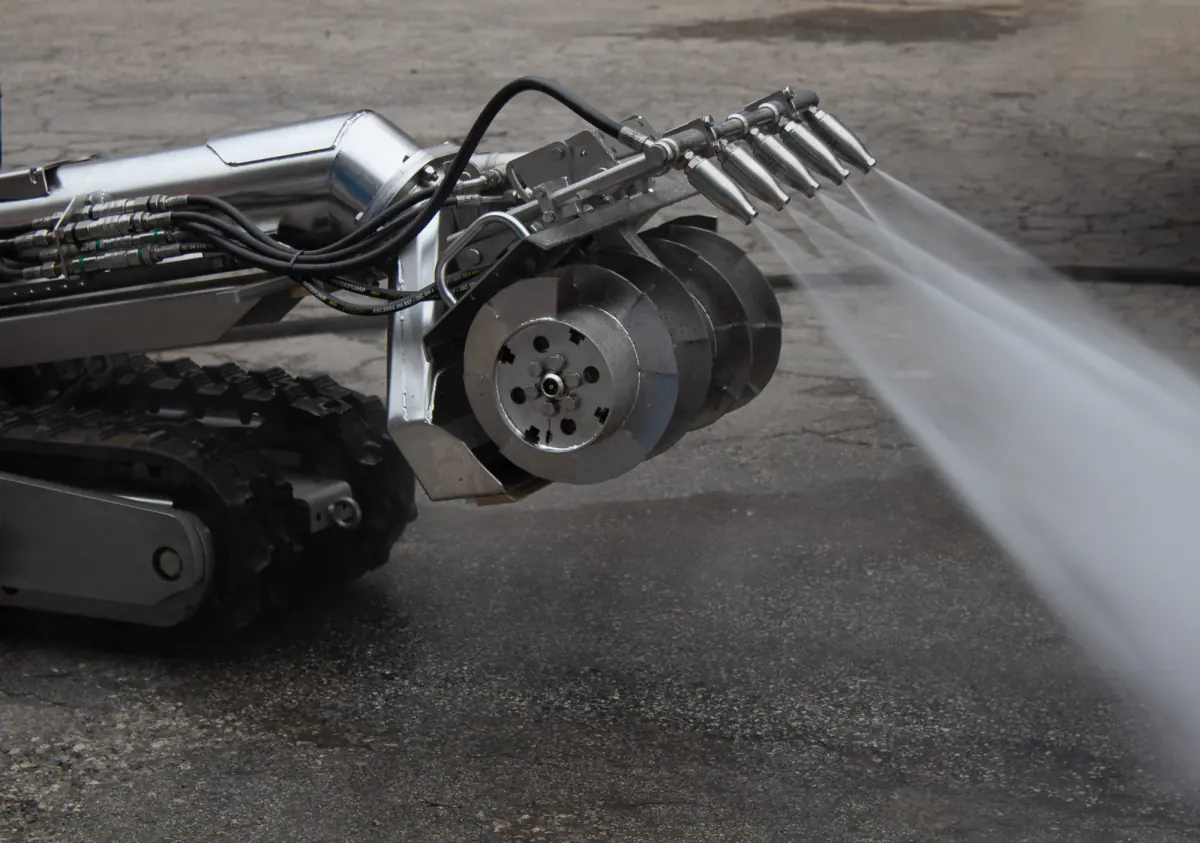

ATEX robots and suction
The robot goes into the tank instead of people: it removes tank bottoms and sludge by suction in the hazardous area and delivers them to the plant, while operators stay outside the danger zone
- Range
- Lombrico S, XXS, XT and FTC robots in EX-0 version, diesel or electric hydraulic power units on skid or in 10 and 20 ft containers, reels for suction hoses
- Features
- ATEX Zone 0, entry through 17" to 24" manholes, remote control
- Certifications
- Gerotto: ATEX 2014/34/EU, ISO 9001 and ISO 14001
- Used in
- Refineries and depots · Remediation
- Manufacturer

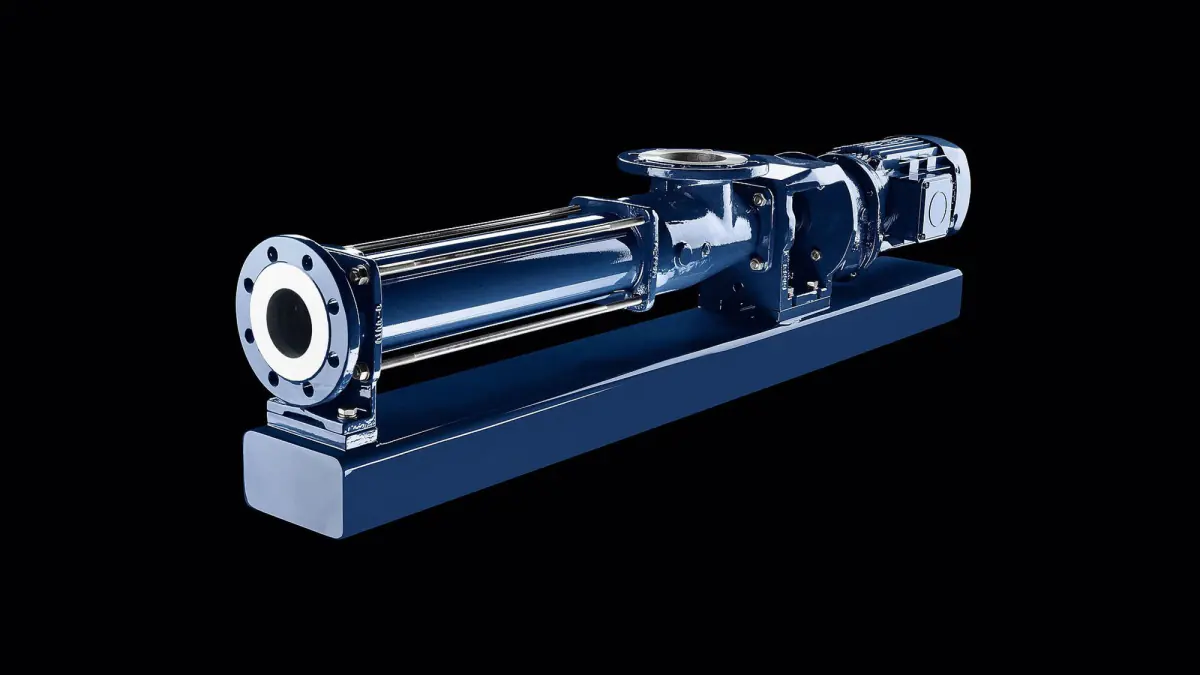

Progressive cavity pumps
They move slop and thick sludge from the tank to the decanter and dose reagents precisely, even when the product changes
- Range
- Seepex BN series pumps: compact, up to 500 m3/h and 48 bar, for low to highly viscous fluids, with or without solids, in horizontal or vertical position
- In the system
- Transfer of slop and sludge to the decanter, polyelectrolyte dosing
- Used in
- All REC plants
- Manufacturer

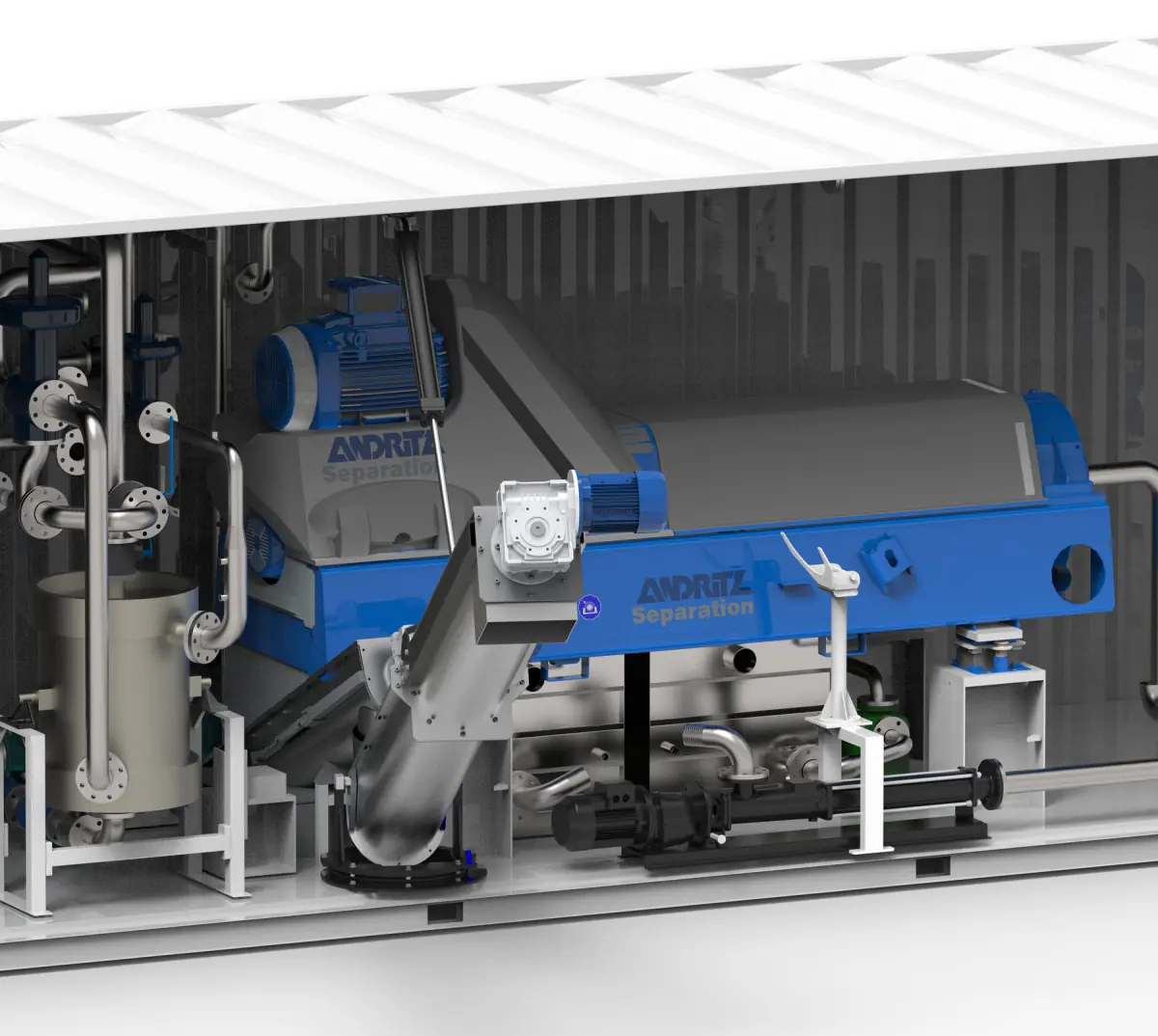

Decanter centrifuges
The heart of separation: the bowl spins at high speed and divides oil, water and solids continuously. In the three-phase ATEX decanter, the pipette adjusts the levels without stopping it
- Range
- Three-phase ATEX for oil, in Zone 1 and Zone 2; A series for chemicals and mining, D for the environment, F for food; bowls from 200 to 1,400 mm
- Features
- Pipette adjustable during operation, TurboWISE feed chamber, TurboJet weirs to reduce energy consumption
- Used in
- Oil & gas · Environment · Chemical and pharmaceutical · Food and beverage · Mining
- Manufacturer

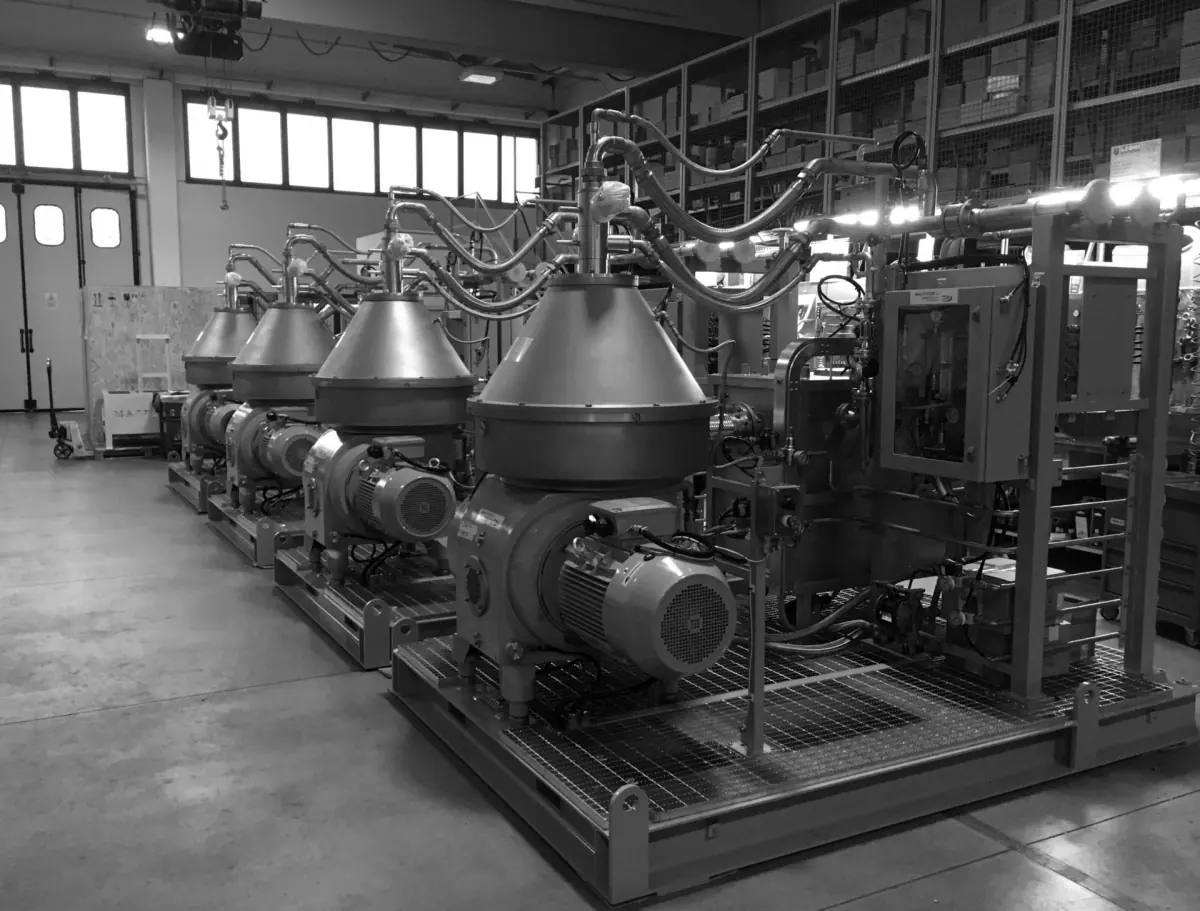

Disc stack centrifugal separators
They clarify liquids and separate two liquids and one solid. After the decanter they polish bilge oil; on their own they purify fuels and lubricants and work in chemical, pharmaceutical and food processes, and in vegetable oil and biofuel production
- Macfuge
- Self-cleaning disc separators, with the bowl discharging solids while the machine is running, and manual-cleaning models; clarifier, concentrator and purifier versions, models from 260 to 711
- Features
- Versions for ATEX areas, plug and play skid-mounted modules; designed and built since 1987 in Ozzano dell’Emilia (Bologna)
- Andritz
- High-speed separators in concentrator and purifier versions
- Used in
- Marine and ports · Chemical and pharmaceutical · Food and beverage
- Manufacturers
Filtration and dewatering
Filters, presses and filtering centrifuges to dewater sludge, recover solids and clarify liquids
- Range
- Filter presses, disc, drum and vacuum belt filters, pressure filters, filtering centrifuges, screw and belt presses, thickeners and screens

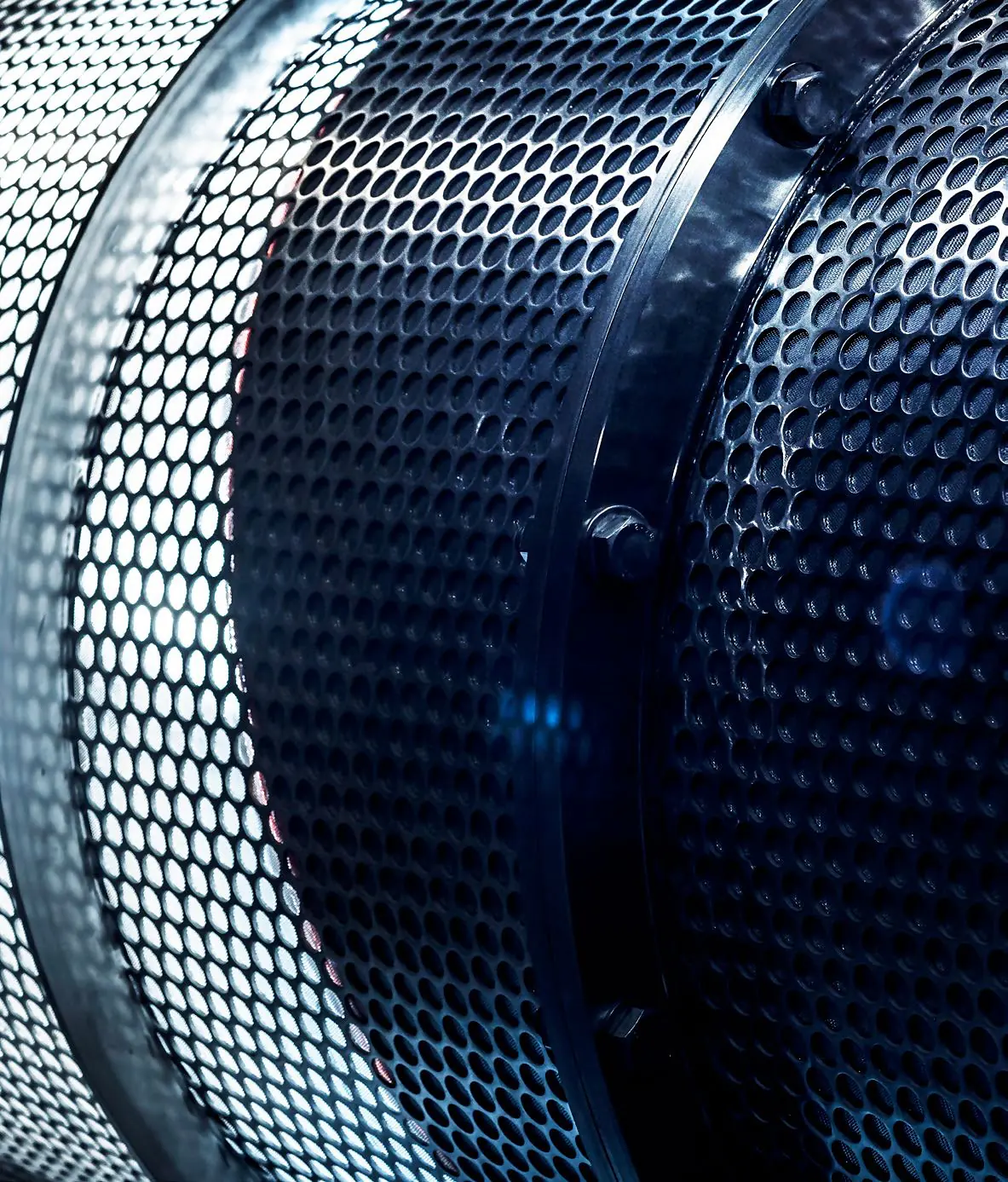

- C-Press
- Screw press that runs unattended, below 60 dB(A), also available as a mobile containerised unit
- Used in
- Environment · Mining · Chemical and pharmaceutical · Food and beverage
- Manufacturer

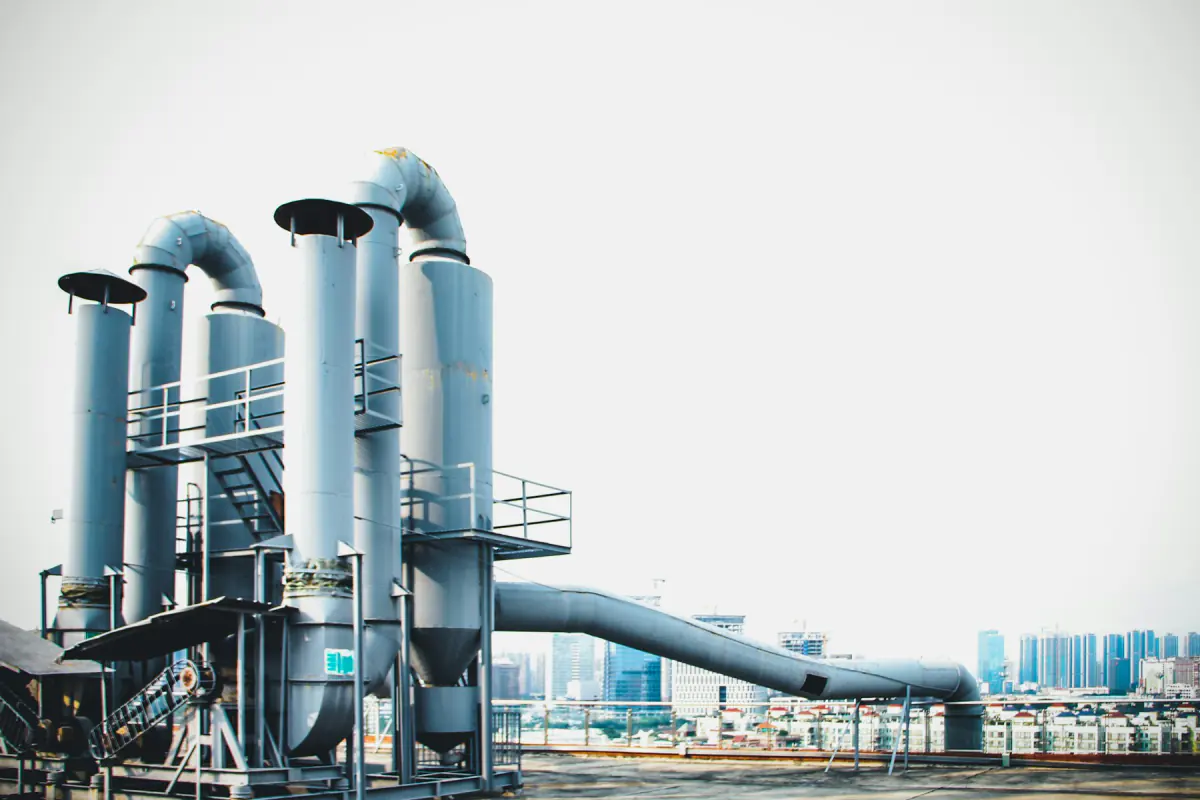

Drying and evaporation
Thermal separation: dryers remove the water left in the solids, evaporators and crystallisers concentrate liquids
- Range
- Contact dryers (drum, paddle, plate) and convection dryers (fluid bed, belt, flash, spray), evaporators and crystallisers
- Used in
- Environment · Chemical and pharmaceutical · Food and beverage · Mining
- Manufacturer

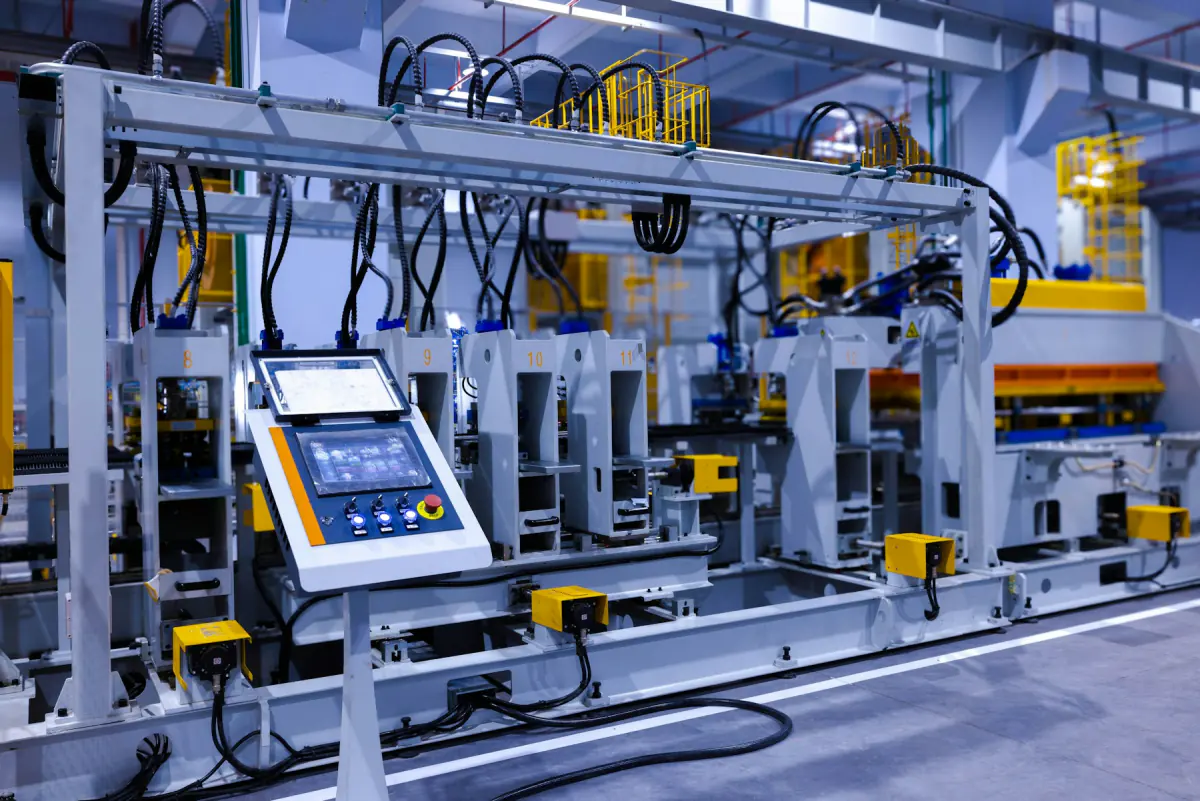

Automation and services
The Metris addIQ control system runs the machine and optimises it over time. Alongside it, Andritz services cover the entire life of the plant
- Automation
- Metris addIQ: process control, monitoring and optimisation
- Services
- Laboratory and on-site testing, original spare parts, local support, service contracts, repairs and upgrades, training
- Manufacturer
Our partners:
Andritz, Gerotto, Macfuge and Seepex
Established manufacturers, each a specialist in its own technology: their machines are at the heart of the plants we design and integrate
-
Andritz
Decanters and separation technologies
- Official Partner of IFA Industry
- Over 30,000 decanters installed
- In separation since 1920
- The manufacturer behind brands such as Bird, Guinard and Krauss‑Maffei
-
Gerotto
Tank cleaning robots
- Over 50 years in business
- Tank entry robots since 2002
- ATEX, ISO 9001 and ISO 14001
-
Macfuge
Disc stack centrifugal separators
- In Ozzano dell’Emilia (Bologna) since 1987
- Hundreds of separators installed worldwide
-
Seepex
Progressive cavity pumps
- Part of the Ingersoll Rand group
- International service network
